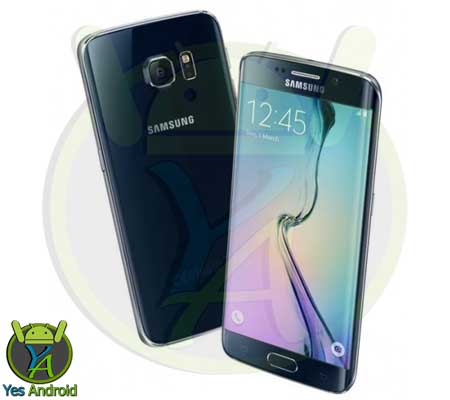

Samsung Galaxy S6 Edge+ TD-LTE SM-G928P Full Specs Datasheet

The Samsung Galaxy S6 Edge+ SM-G928P release date was August 21 in the US and Canada; pre-orders for US customers opened at 3:00 PM Eastern time on August 13. Unlike the Galaxy Note 5, the S6 Edge+ is also available in the UK. It goes on sale on September 4 and pre-orders have been open since August 18.

The Galaxy S6 Edge+ price is sitting around US$779 for the 32 GB version and US$859 for the 64 GB version off-contract (depending on where you buy it). For a two-year deal, you'll pay US$349.99 for 32 GB and US$449.99 for 64 GB handset.

In the US, both versions of the Galaxy S6 Edge+ SM-G928P are available in Black Sapphire and Gold Platinum colors. The handset is available with carriers Sprint, T-Mobile, AT&T, U.S. Cellular and Verizon Wireless as well as online retailers, including Amazon and BestBuy. Now I will show you the Full Specs Datasheet of Galaxy S6 Edge Plus SM-G928P. Also you may want to take a look to the S6 Edge+ Firmware Update Section to have the latest Firmware Update for S6 Edge Plus SM-G928P.

Samsung Galaxy S6 Edge+ TD-LTE SM-G928P Full Specs Datasheet

Detailed Technical Datasheet of Samsung SM-G928P Galaxy S6 Edge+ TD-LTE 32GB (Samsung Zen)


Brand: Samsung
Manufacturer: Samsung Electronics
Hardware Designer: Samsung Electronics
Project Codename: Samsung Zen
Release Date: August, 2015

Physical Attributes

Dimensions(width x height x depth): 75.8 x 154.4 x 6.9 millimetres
3 x 6.1 x 0.3 inches
Bounding Volume: 80.8 cubecentimetres
Mass: 153 grams (battery included)

Software Environment

Embedded Operating System: Google Android 5.1.1
Kernel: Linux

Microprocessor, Chipset

CPU Clock: 2100 MHz
CPU: Samsung Exynos 7 Octa 7420
Width of Machine Word: 64 bit
CPU Core: 4x ARM Cortex-A57 MPcore + 4x ARM Cortex-A53 MPcore
Level 2 cache: 2048 KiB
Instruction Set: ARMv8-A (A32, A64)

Memory, Storage capacity

RAM type: LPDDR4 SDRAM , 1555MHz
RAM capacity: 4096 MiB
ROM type: Flash EEPROM
ROM capacity: 30518 MiB
ROM capacity in bytes: 32 GB (billion bytes)

Graphical subsystem

Display Type: color Super Active Matrix OLED display
Display Color Depth: 24 bit/pixel (16777216 scales)
Display Diagonal: 5.7 " (143.9 millimetres)
Display Resolution: 1440 x 2560 (3686400 pixels)
Viewable Display Size: 2.78 " x 4.94 " (70.55 x 125.42 millimetres)
Pixel density (dot pitch): 518.5 pixel/inch (0.04899 millimetre/pixel)
Graphical Controller: ARM Mali-T760MP8


Audio Subsystem

Audio Channel(s): stereo
Microphone(s): stereo
Loudspeaker(s): mono
Audio Output: 3.5mm plug

Cellular Phone

Cellular Networks: GSM850, GSM900, GSM1800, GSM1900, CDMA800 (BC0), CDMA1900 (BC1/BC14), UMTS850 (B5), UMTS900 (B8), UMTS1900 (B2), UMTS2100 (B1), LTE850 (B5), LTE1700/2100 (B4), LTE1900 (B2), LTE1900 (B25), LTE700 (B12), CDMA800 (BC10), LTE800 (B26), TD-LTE2500 (B41)
Cellular Data Links: GPRS, EDGE, UMTS, HSDPA, HSUPA, HSPA+, cdmaOne, CDMA2000 1xRTT, CDMA2000 1xEV-DO Rel. 0, CDMA2000 1xEV-DO Rev A, LTE, LTE-A
Cellular Antenna: Internal antenna
Call Alert: 128 -chord melody (polyphonic)
Vibrating Alert: Supported
Speakerphone : Supported
Phone Controller: Samsung Shannon 333
SAR (head) CDMA1900 (BC1/BC14): 0.33 W/kg
SAR (body) CDMA1900 (BC1/BC14): 0.73 W/kg

Control Peripherals

Positioning Device: Multi-touch screen
Primary Keyboard: Not supported
Directional Pad: Not supported
Scroll Wheel: Not supported

Interfaces

USB: USB 2.0 host/client, Hi-Speed (480Mbit/s), USB On-The-Go 1.3 compliant
USB Series Micro-B (Micro-USB) connector
Bluetooth (802.15): Bluetooth 4.2, Internal antenna
Wireless LAN/Wi-Fi (802.11): IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Internal antenna
Infrared Gate: Not supported

Multimedia Broadcast

Analog Radio: Not supported
Digital Media Broadcast: Not supported

Satellite Navigation

Built-in GPS module: Supported
GPS Protocol: NMEA 0183
GPS Antenna: Internal antenna
Complementary GPS Services: Assisted GPS, QuickGPS, Geotagging, Simultaneous GPS (S-GPS)

Built-in Digital Camera

Sensor Type: CMOS sensor
Resolution: 5312 x2988 pixels (15.87MP)
Autofocus (AF): Supported
Optical Zoom: 1 x
Macro Mode: Supported
Built-in Flash: mobile light (LED)
Camcorder: 3840x2160 pixels , 30frame/sec
Recordable Image Formats: JPG, RAW
Recordable Video Formats: 3GP, 3G2, MPEG4

Built-in Secondary Digital Camera

Sensor Type: CMOS sensor
Resolution: 2576 x1932 pixels (4.98MP)
Camcorder: 1920x1080pixels , 30frame/sec
Recordable Image Formats: JPG
Recordable Video Formats: 3GP

Power Supply

Battery Technology: Lithium-ion battery
Battery Layout: built-in
Battery Capacity: 3000 mAh

Additional Details

Built-in accelerometer: Supported
Additional Features:
  • capacitive touchscreen
  • Corning Gorilla Glass 4 screen
  • built-in digital compass
  • GPRS Class 12
  • EDGE Class 12
  • HSPA+ 42Mbps
  • HSUPA 5.76
  • LTE 300/50Mbps
  • S Voice
  • active noise cancellation
  • DLNA
  • HDR photo
  • HDR video
  • OIS
  • NFC (A/B)
  • WiFi Direct
  • Wi-Fi Mobile Hotspot
  • HT80
  • VoLTE
  • barometer
  • BSI sensor
  • fingerprint recogniser
  • heart rate sensor
  • gyro sensor
  • light sensor
  • Hall sensor
  • proximity sensor
  • QI wireless charging
  • PMA wireless charging
  • nano-SIM
  • SAR US
Datasheet State: Preliminary specifications
